Let’s discuss the question: how to build a trailer axle. We summarize all relevant answers in section Q&A of website Activegaliano.org in category: Blog Marketing. See more related questions in the comments below.
How is an axle made?
Steel axles are forged and heat treated via induction coils. By swiftly drawing the material through the electromagnetic coil, the heating and cooling of the material can be carefully controlled. In this way, engineers produce axle shafts featuring: Hard, solid surfaces.
What weight should a trailer axle be?
In addition to Bridge Formula weight limits, Federal law states that single axles are limited to 20,000 pounds, and axles spaced more than 40 inches and not more than 96 inches apart (tandem axles) are limited to 34,000 pounds. Gross vehicle weight is limited to 80,000 pounds (23 U.S.C. 127).

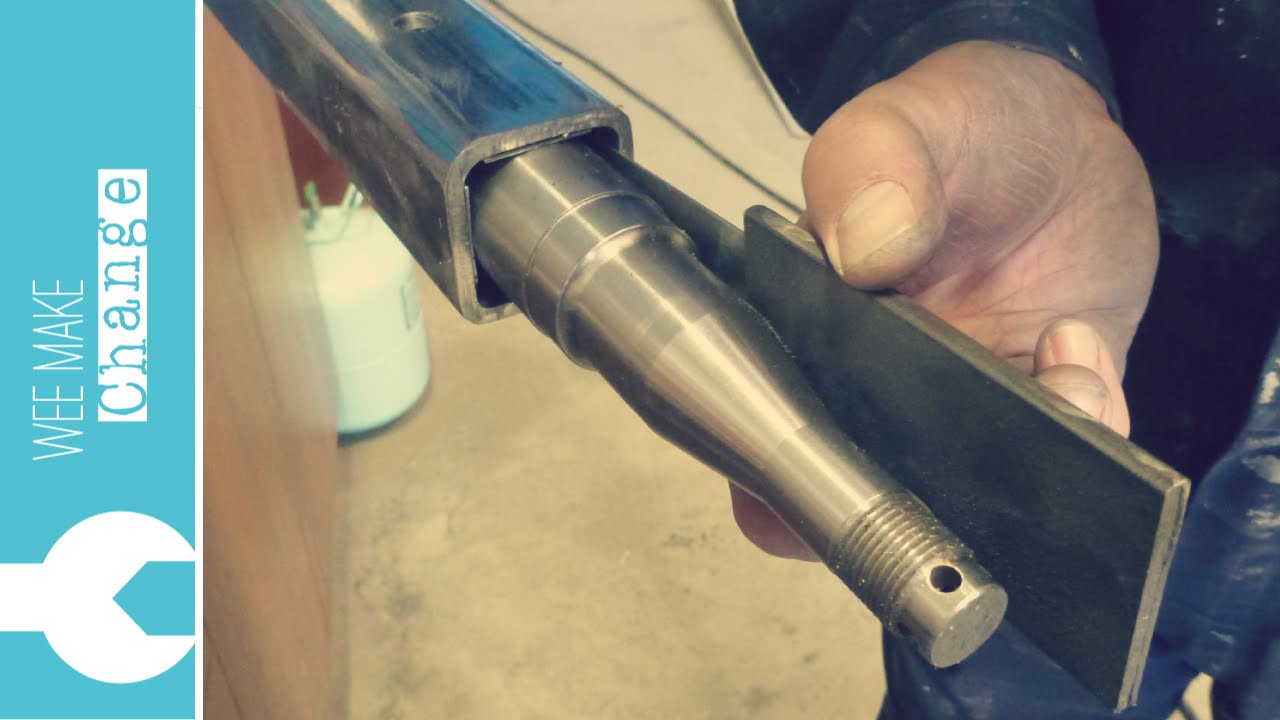

Making a new trailer axle #2021
Images related to the topicMaking a new trailer axle #2021
How do you weld a stub axle?
Tack weld through the plug weld holes to secure the back end of the stub axle. Set your welder up so that you can lay a good hot penetrating weld (practice on some scrap steel) and fully weld around the stub axle and axle tube. Fill the plug weld holes up until the weld is flush with the top of the axle tube.
What size is my trailer axle?
If you bought a company-made trailer (as opposed to building one yourself from a kit) there should be a tag with the VIN, weight and capacities all there for you. You should find it on the driver’s side of the trailer. A second way to determine the size axle you need is to measure the diameter of your existing axle.
What are the parts of a trailer axle?
straight trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, flanges for mounting drum or disc brakes (not included), cast iron 5 on 4½” hubs with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates.
How do you harden axles?
Axle shafts are typically case hardened using induction. In this process, the surface layer of a steel component is heated to form austenite, and then spray quenched to form martensite. The result is a hardened layer that is under residual compression and a core that is under residual tension.
What is full floating axle?
A full-floating axle carries the vehicle’s weight on the axle casing, not the halfshafts; they serve only to transmit torque from the differential to the wheels. They “float” inside an assembly that carries the vehicle’s weight. Thus the only stress it must endure is torque (not lateral bending force).
What is the difference between Axel and axle?
An axel is a figure-skating jump named after the Norwegian skater Axel Paulsen (1855-1938). It does not need to be capitalized. An axle is a rounded shaft or rod that connects two wheels. Coincidentally, this word’s origins are also Norwegian; it comes from the Old Norse öxull.
How much weight can a 3500 lb axle handle?
The carrying capacity of two 3,500 pound axles is 7,000 pounds.
How much weight can 2 7000 lb axle carry?
Expert Reply: A trailer that has two 7,000 lb axles has an axle capacity of 14,000 lbs, but trailers aren’t always limited by the axles which means a trailer could be rated for 12,000 lbs but have to 7k axles which means it’s overall capacity is still 12,000 lbs.
How much weight can a 8×5 trailer carry?
With a TARE weight of only 250kg the 8×5 trailer provides you with a genuine 500kg load carrying capacity. If you are considering a 7×5 or 8×5 trailer then many 750kg ATM trailers on the market are very heavy and weigh well over 254kg.
Build Your Own Custom Width Trailer Axle
Images related to the topicBuild Your Own Custom Width Trailer Axle
Where should you not weld on a trailer?
Generally all welding is prohibited by frame manufacturers on the top or bottom flanges.
Can trailer axles be welded?
NOTE – Building your own axles should only be undertaken by a skilled and proficient welder equipped with a heavy duty, industrial strength welding machine. Good weld penetration with no porosity or undercut is required to ensure the strength and integrity of the axle is not compromised.
What steel should I use to build a trailer?
Any trailer plans that you do follow should tell you exactly the width of trailer frame steel that you need to be using. In most cases, it is going to be 2″ x 4″ x 1/8″ rectangular steel.
How much weight can a 5 lug axle carry?
5 lugs sounds like the max each axle may be rated for is 3500 lbs.
How much weight can a 8 lug axle carry?
And just like larger truck axles, an eight-lug trailer axle is usually rated at 5,200 to 7,000 per axle so somewhere between 10K and 14K gross weight.
How much weight can a 6 lug axle carry?
Registered. 6 lugs = 5200lb (or higher) axle.
What are the different types of trailer axles?
Trailer axles are normally divided into two different types: Spring axles and torsion axles. While these two types of axles perform the same basic job, the way they go about suspending and cushioning the trailer load is completely different.
How much is a axle?
On average, you can expect it to cost between $880 and $959 to replace your car axle shaft, depending on the type of car you drive and which axle is broken. However, it’s possible that you’ll just need to repair your axle rather than replace it.
Are axles heat treated?
In order to improve the metallurgical property of the material, the axle shaft is redesigned & strengthened by suitable heat treatment process.
Tiny House Trailer Build – 3. Axle Fabrication
Images related to the topicTiny House Trailer Build – 3. Axle Fabrication
What is 1541H steel?
AISI 1541H is an H-Steel grade Carbon Steel. It is composed of (in weight percentage) 0.35-0.45% Carbon (C), 1.25-1.75% Manganese (Mn), 0.04%(max) Phosphorus (P), 0.05%(max) Sulfur (S), 0.15-0.30% Silicon (Si), and the base metal Iron (Fe).
What steel are axle shafts made of?
Axleshafts typically use medium-carbon steel. Carbon increases strength but makes the steel less ductile or flexible. Aftermarket alloy shafts often have a higher carbon content than OE shafts and also introduce other metals such as chromium, molybdenum, and nickel into the mix.
